Z Type Sheet Pile
Technical Specifications
Product Description
Hot-Roll Z Type Sheet Pile
The Z type configuration is generally considered the strongest and most efficient.
These shapes resemble wide-flange beams, having a web and two flanges. The interlocks are located out on the flanges at maximum
distance from the neutral axis, and this provides a high section modulus for resisting bending moments.
Because of this, Z-shapes have traditionally been used for heavier construction projects. However, they are now complemented by the
arch or U shapes for lighter work, and lightweight Z-shapes have been also introduced into the marketplace.
Because of their inherent strength, Z-piles can be handled and shipped with less exposure to possible damage than some other style sheets.
Z-piles are generally used in constructing straight wall structures – cofferdams, bulkheads and retaining walls.

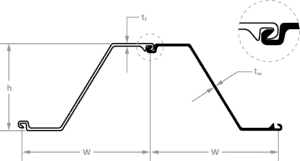

| Dimensions | Thickness | Area | Weight | Section Properties | Coating Area | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Width (in/mm) | Height (in/mm) | Flange (in/mm) | Web (in/mm) | Cross Sectional (in²/ft) | Single Pile (lb/ft) | Wall (lb/ft²) | Elastic (in³/ft) | Plastic (in³/ft) | Moment of Inertia (in⁴/ft) | Both Sides (ft²/ft) | Wall Surface (ft²/ft²) |
| 30.31 770 | 13.39 340 | 0.375 9.5 | 0.375 9.5 | 6.40 135.4 | 55 81.26 | 21.77 106.30 | 25.65 1379 | 30.50 1641 | 171.7 23447 | 6.10 1.86 | 1.20 1.20 |
| 27.56 700 | 16.14 410 | 0.375 9.5 | 0.375 9.5 | 7.07 149.6 | 55 81.85 | 24.05 117.40 | 35.08 1886 | 41.33 2222 | 283.1 38659 | 6.18 1.88 | 1.35 1.35 |
| 27.56 700 | 16.16 411 | 0.394 10.0 | 0.394 10.0 | 7.34 155.4 | 57 85.37 | 24.82 122.00 | 36.24 1948 | 42.80 2301 | 292.8 39984 | 6.18 1.88 | 1.35 1.35 |
| 27.56 700 | 16.20 412 | 0.433 11.0 | 0.433 11.0 | 7.80 165.2 | 61 90.78 | 26.56 129.70 | 38.69 2080 | 45.85 2465 | 313.4 42797 | 6.18 1.88 | 1.35 1.35 |
| 27.56 700.0 | 16.25 413.0 | 0.480 12.20 | 0.480 12.20 | 8.57 181.4 | 67 99.71 | 29.20 142.44 | 41.47 2230 | 49.34 2653 | 336.9 46006 | 6.18 1.88 | 1.35 1.35 |
| 27.56 700 | 17.32 440 | 0.500 12.7 | 0.500 12.7 | 9.08 192.2 | 71 105.66 | 30.99 151.30 | 48.50 2608 | 57.01 3065 | 419.9 57340 | 6.49 1.98 | 1.41 1.41 |
| 27.56 700 | 17.38 441 | 0.560 14.2 | 0.560 14.2 | 9.98 211.2 | 78 116.08 | 33.96 165.82 | 52.62 2829 | 62.16 3342 | 457.4 62461 | 6.49 1.98 | 1.41 1.41 |
| 27.56 700 | 19.69 500 | 0.689 17.5 | 0.500 12.7 | 11.00 232.9 | 86 127.99 | 37.45 182.83 | 70.84 3809 | 81.57 4386 | 697.3 95214 | 6.58 2.01 | 1.43 1.43 |
| 27.56 700.0 | 19.73 501.0 | 0.735 18.70 | 0.551 14.00 | 11.77 249.1 | 92 136.91 | 40.06 195.59 | 74.97 4031 | 86.75 4664 | 739.6 100997 | 6.58 2.01 | 1.43 1.43 |
| 27.56 700.0 | 19.77 502.0 | 0.769 19.50 | 0.589 15.0 | 12.41 262.7 | 97 144.36 | 42.24 206.23 | 78.17 4203 | 90.80 4881 | 772.5 105490 | 6.58 2.01 | 1.43 1.43 |
