H Beam &I Beam
Technical Specifications
Material:
Q235B/Q345b/Ss400/A36/St37
Technical :
Welding or Hot-Roll
Surface :
No Treatment
Length:
3m 5.8m 6m 9m 12m
HS Code:
7216331900
Product Description

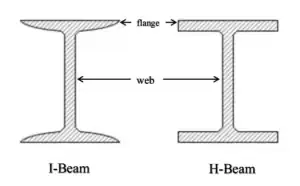

H Beam &I Beam

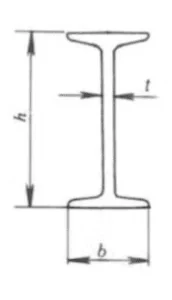

| Size (mm) | Dimensions (mm) | Weight (kg/m) | Diagram Reference | ||
|---|---|---|---|---|---|
| H | B | T1 | |||
| 100 * 68 | 100 | 68 | 4.5 | 11.216 |  |
| 120 * 74 | 120 | 74 | 5.0 | 13.987 | |
| 140 * 80 | 140 | 80 | 5.5 | 16.890 | |
| 160 * 88 | 160 | 88 | 6.0 | 20.513 | |
| 180 * 94 | 180 | 94 | 6.5 | 24.143 | |
| 200 * 100 | 200 | 100 | 9.0 | 31.069 | |
| 240 * 116 | 240 | 116 | 8.0 | 37.477 | |
| 250 * 116 | 250 | 116 | 8.0 | 38.105 | |
| 270 * 122 | 270 | 122 | 8.5 | 42.825 | |
| 280 * 122 | 280 | 122 | 8.5 | 43.492 | |
| 300 * 126 | 300 | 126 | 9.0 | 48.084 | |
| 320 * 130 | 320 | 130 | 9.5 | 52.717 | |
| 360 * 136 | 360 | 136 | 10.0 | 60.037 | |
| 400 * 142 | 400 | 142 | 10.5 | 67.598 | |
| 450 * 150 | 450 | 150 | 11.5 | 80.420 | |
| 500 * 158 | 500 | 158 | 12.0 | 93.654 | |
| 550 * 166 | 550 | 166 | 12.5 | 105.355 | |
| 560 * 166 | 560 | 166 | 12.5 | 106.316 | |
| 630 * 176 | 630 | 176 | 13.0 | 121.407 | |

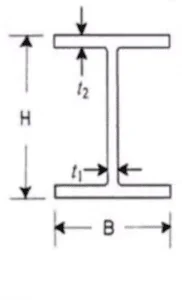

| Size (mm) | Dimensions (mm) | Weight (kg/m) | Diagram Reference | |||
|---|---|---|---|---|---|---|
| H | B | Web (t1) | Flange (t2) | |||
| 100 * 100 | 100 | 100 | 6 | 8 | 17.2 |  |
| 125 * 125 | 125 | 125 | 6.5 | 9 | 23.8 | |
| 150 * 100 | 150 | 100 | 6 | 9 | 21.4 | |
| 175 * 175 | 175 | 175 | 7.5 | 11 | 40.4 | |
| 200 * 200 | 200 | 200 | 8 | 12 | 50.5 | |
| 248 * 124 | 248 | 124 | 5 | 8 | 25.8 | |
| 250 * 125 | 250 | 125 | 6 | 9 | 29.7 | |
| 298 * 149 | 298 | 149 | 5.5 | 8 | 32.6 | |
| 300 * 150 | 300 | 150 | 6.5 | 9 | 37.3 | |
| 350 * 175 | 350 | 175 | 7 | 11 | 50 | |
| 400 * 150 | 400 | 150 | 8 | 13 | 55.8 | |
| 450 * 150 | 450 | 150 | 9 | 14 | 65.5 | |
| 500 * 150 | 500 | 150 | 10 | 16 | 77.1 | |
| 600 * 200 | 600 | 200 | 11 | 17 | 106 | |
| 700 * 300 | 700 | 300 | 13 | 24 | 185 | |
| 800 * 300 | 800 | 300 | 14 | 26 | 210 | |
| 900 * 300 | 900 | 300 | 16 | 28 | 243 | |
